LED Ring Test

Pairing your LED Ring

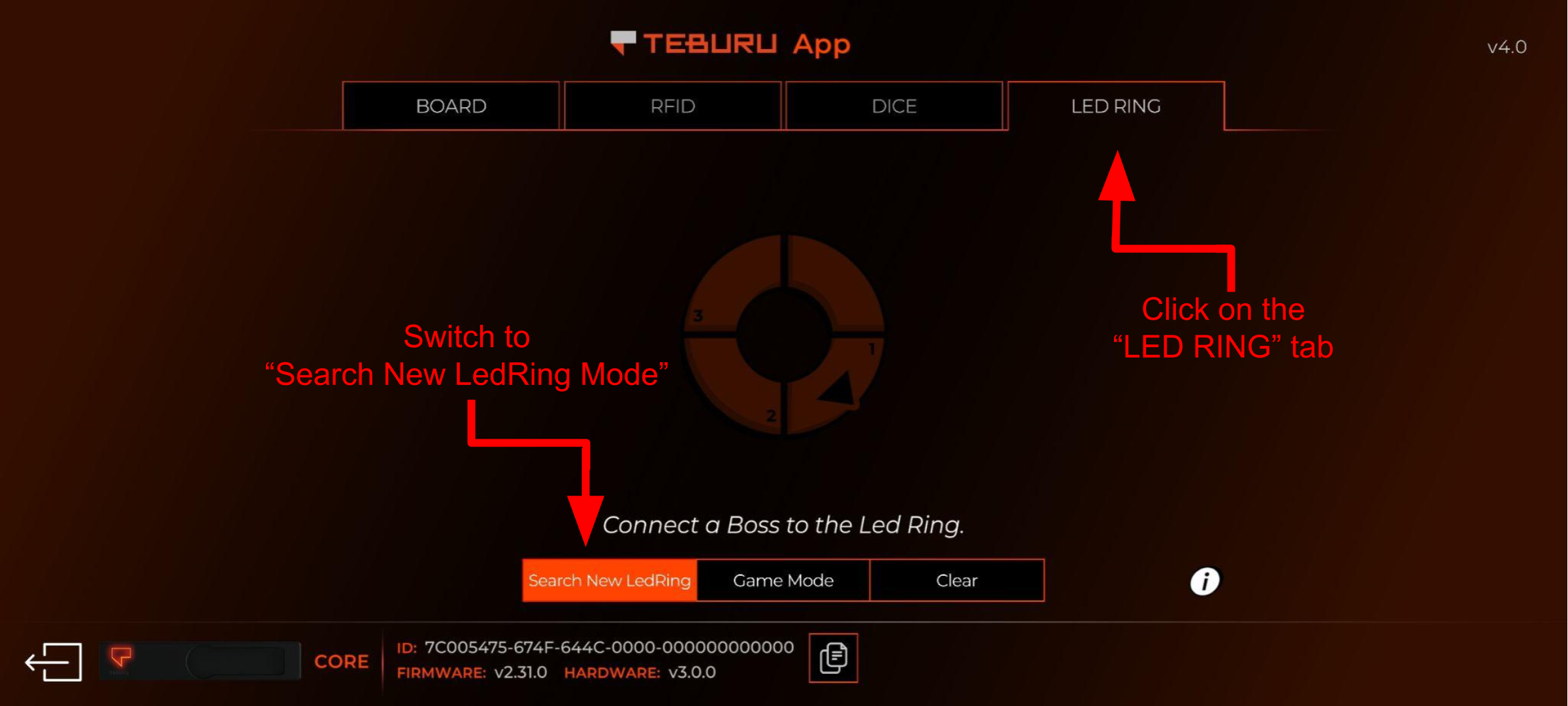

To pair your LED Ring with the diagnostic app, click on the "LED Ring" button at the top of the app.

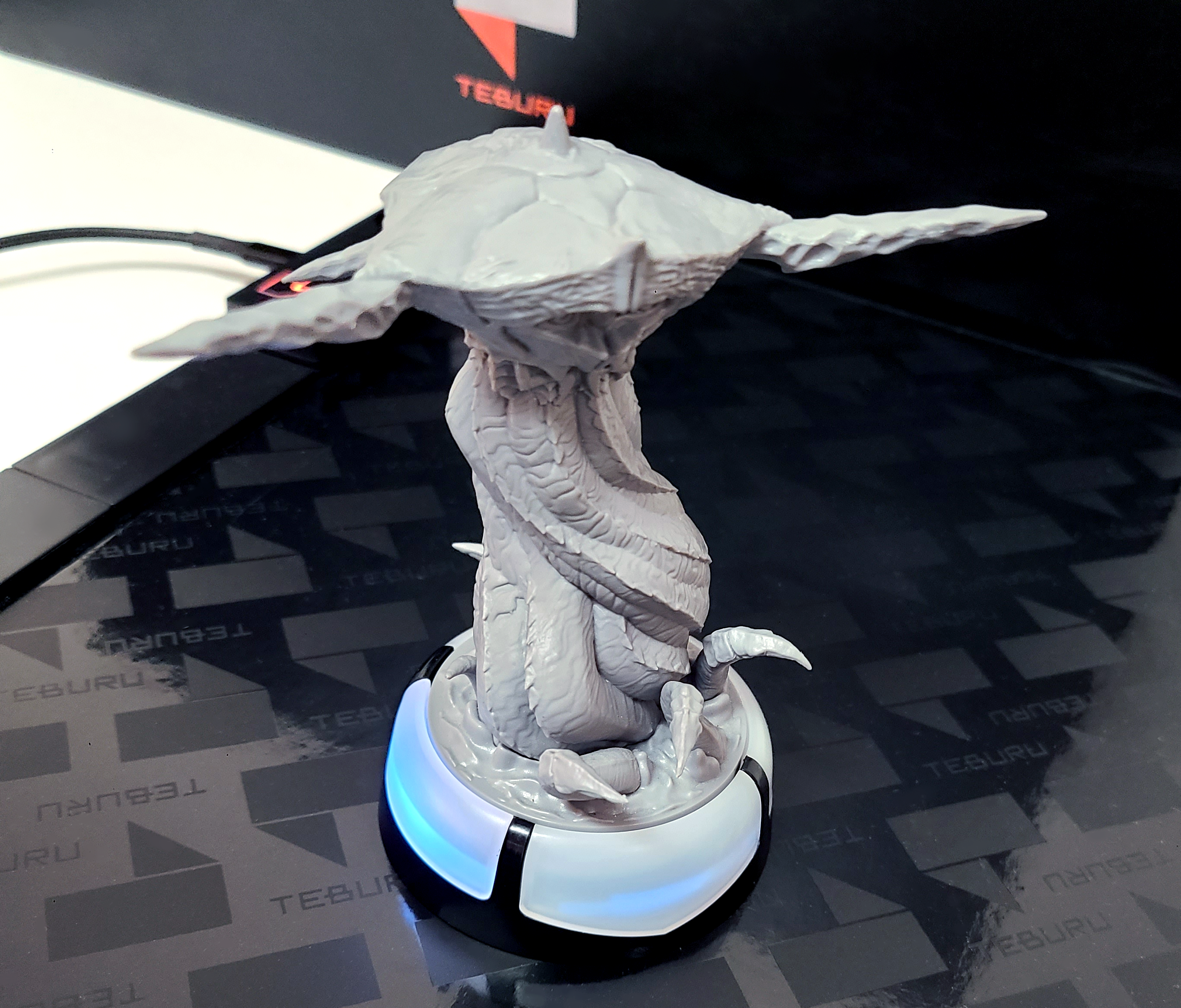

Insert the boss miniature into the LED Ring base and twist it into place. The LED Ring will light up white in sequence, followed by a flash of green, indicating battery charge. The LED Ring will appear on screen and it will switch to "Game Mode".

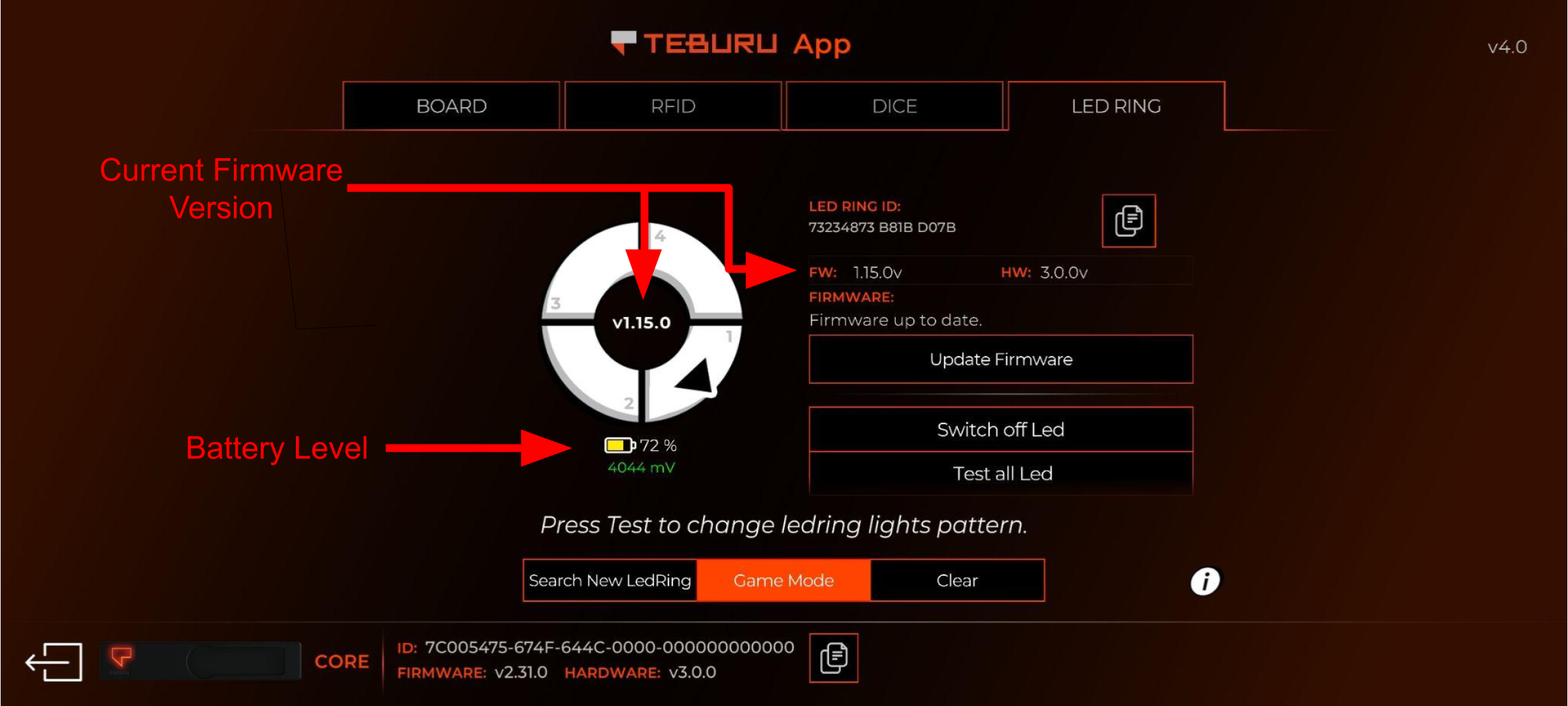

General status information for the LED Ring will be displayed such as the current firmware version and the battery level. The LED Ring will not function if the battery level is under 3500 mv.

Testing LED Ring

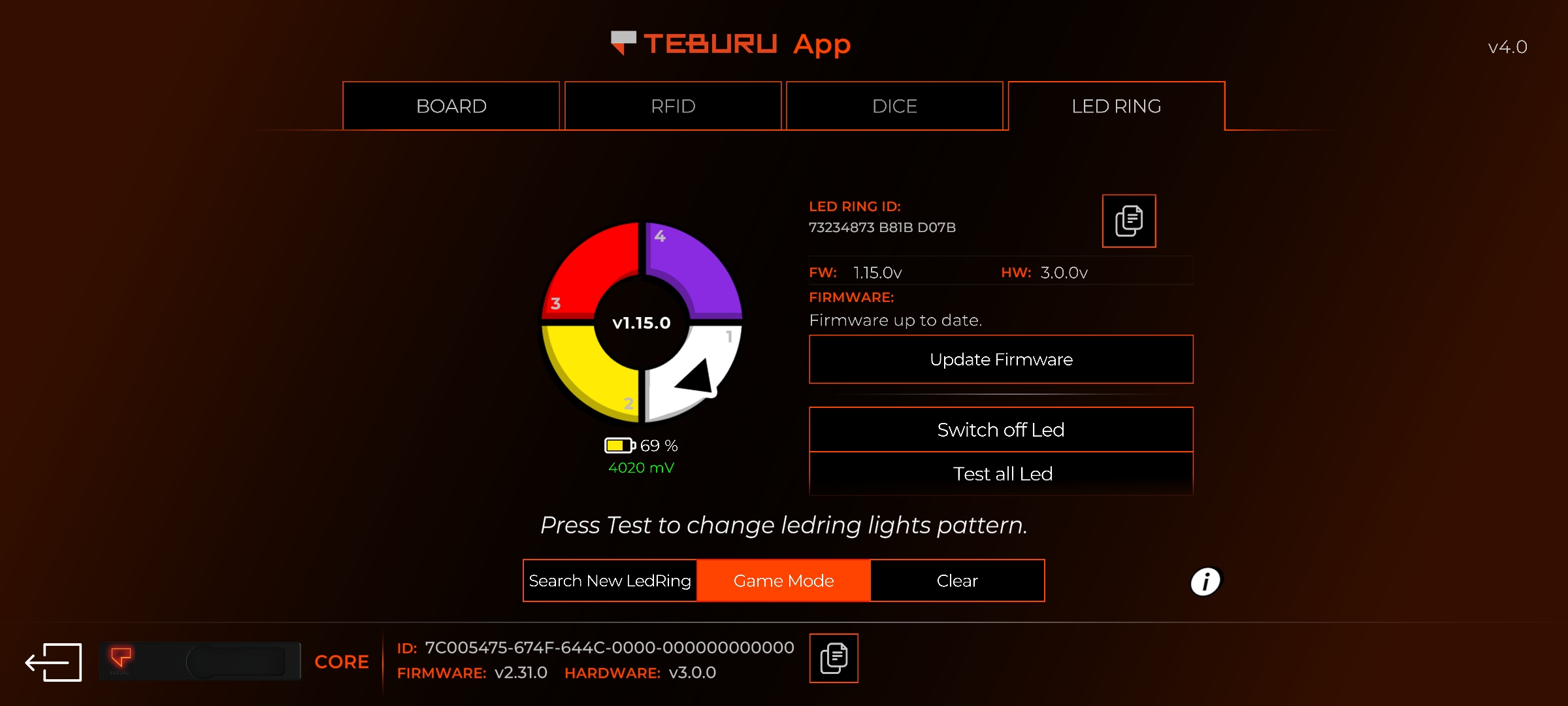

In "Game Mode" you can press the "Test all Led" to test that the Leds light up as expected. "Test all Led" can be pressed repeatedly to cycle though the different color patterns.

Updating Firmware

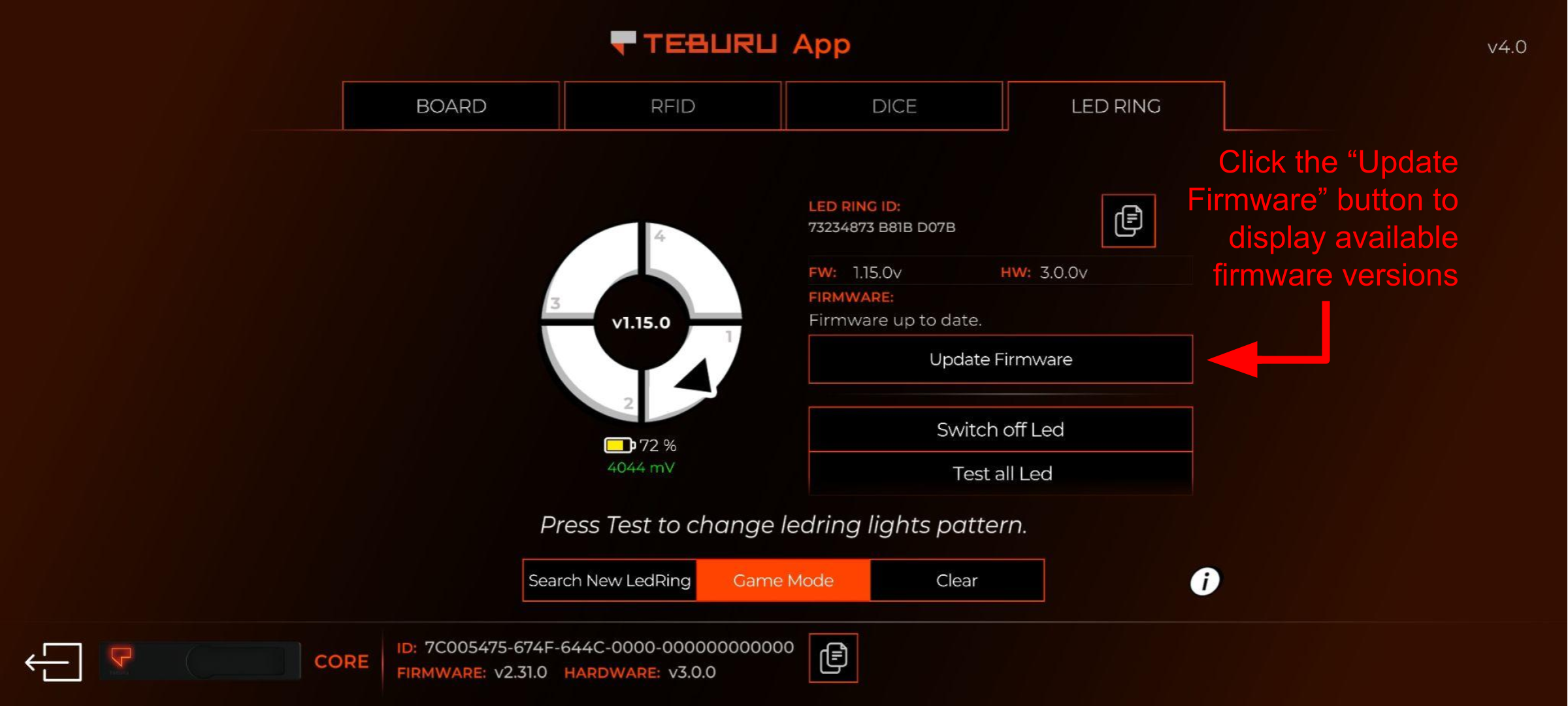

Press the "Update Firmware" button to view a list of available firmware versions.

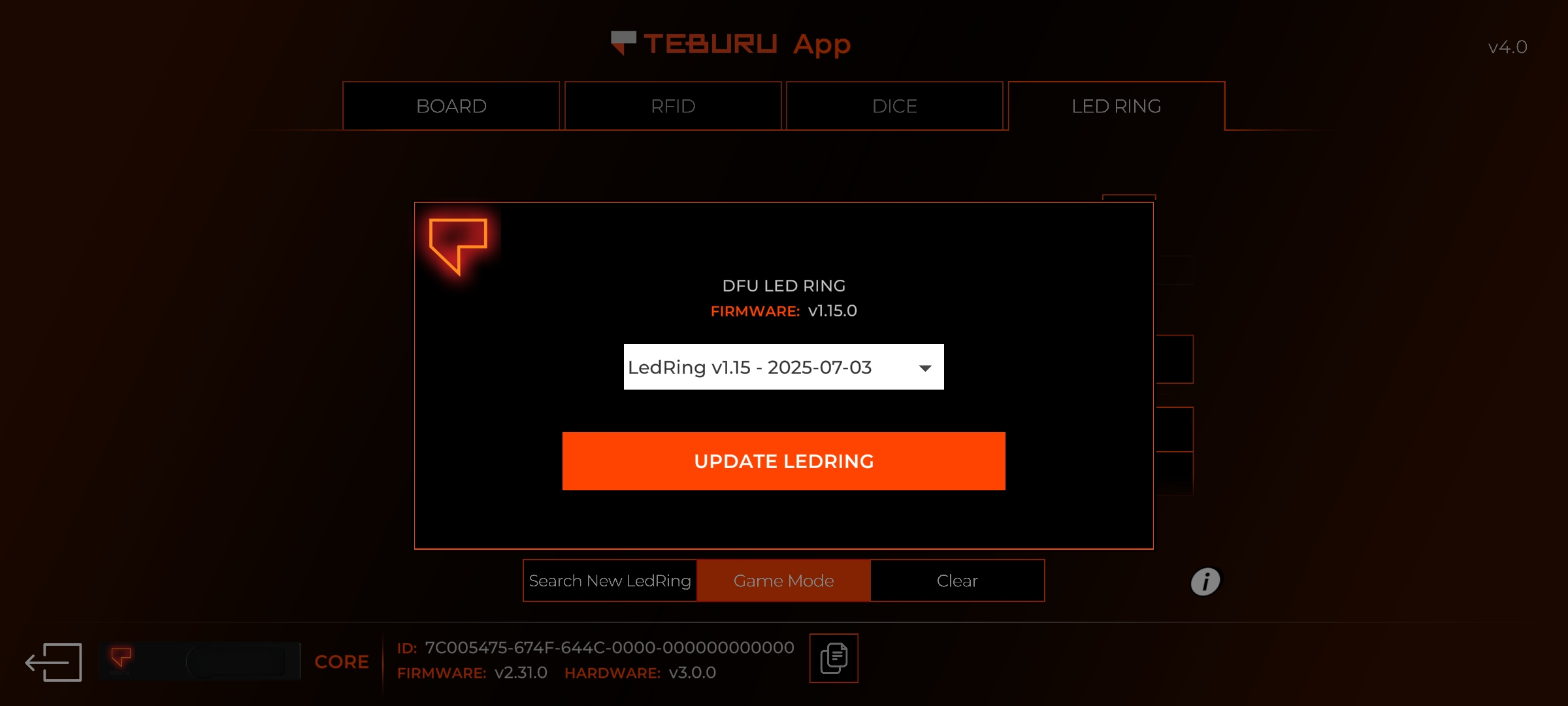

If a newer firmware version is available, press the "UPDATE LEDRING" button to start the update process.

The LED Ring will glow blue as it updates and then reboot after it finishes.
