Board Troubleshooting

Connecting the Board

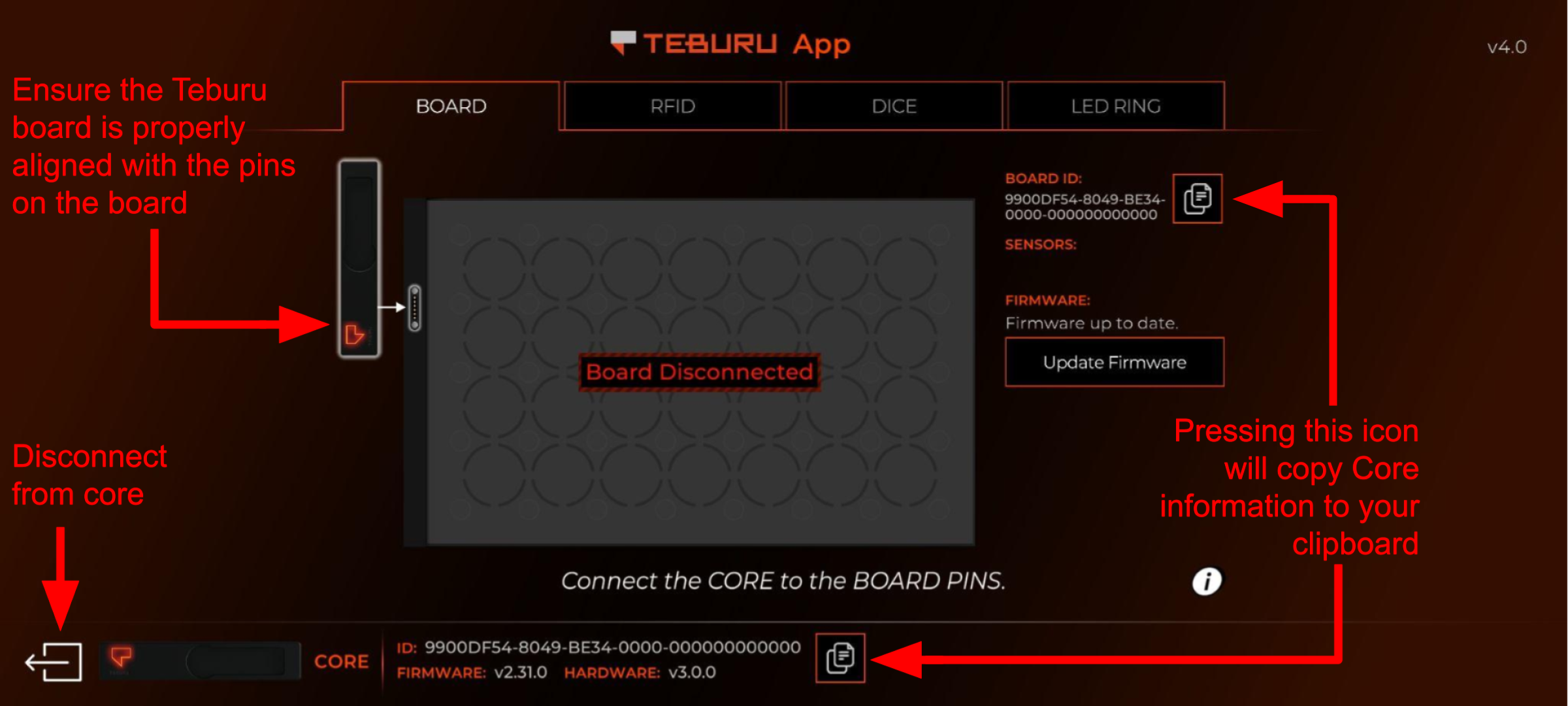

You must place the Teburu Core securely on the pins highlighted in the image below for the board to be recognized, otherwise you will receive the "Board Disconnected" notice.

Testing Sensors

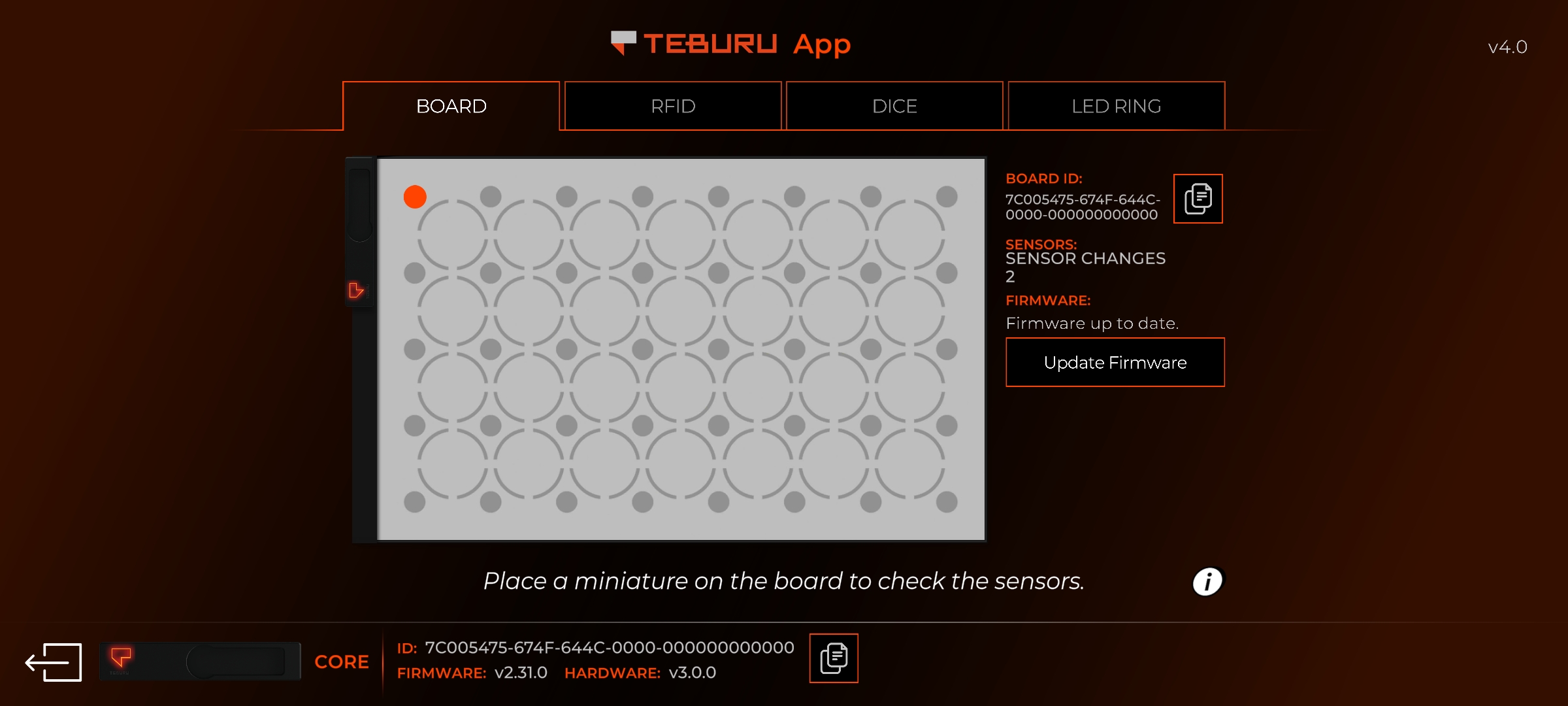

Once the board is connected it will display a virtual representation of the sensor test map. This virtual map is based on the physical sensor test map included in the hardware kit. When aligned on the board, the solid grey circles represent the position of each sensor.

Every sensor should remain grey if there are no miniatures on the board. If sensors light up on the app despite having no miniatures on the board, try disconnecting and reconnecting the board. To test each sensor you can move a miniature to each grey circle on the board to ensure that they are responsive. If the sensor is correctly working, the corresponding circle on the app will turn orange.

Ensure that the "Sensor Changes" only updates once with each change in status of the sensor.

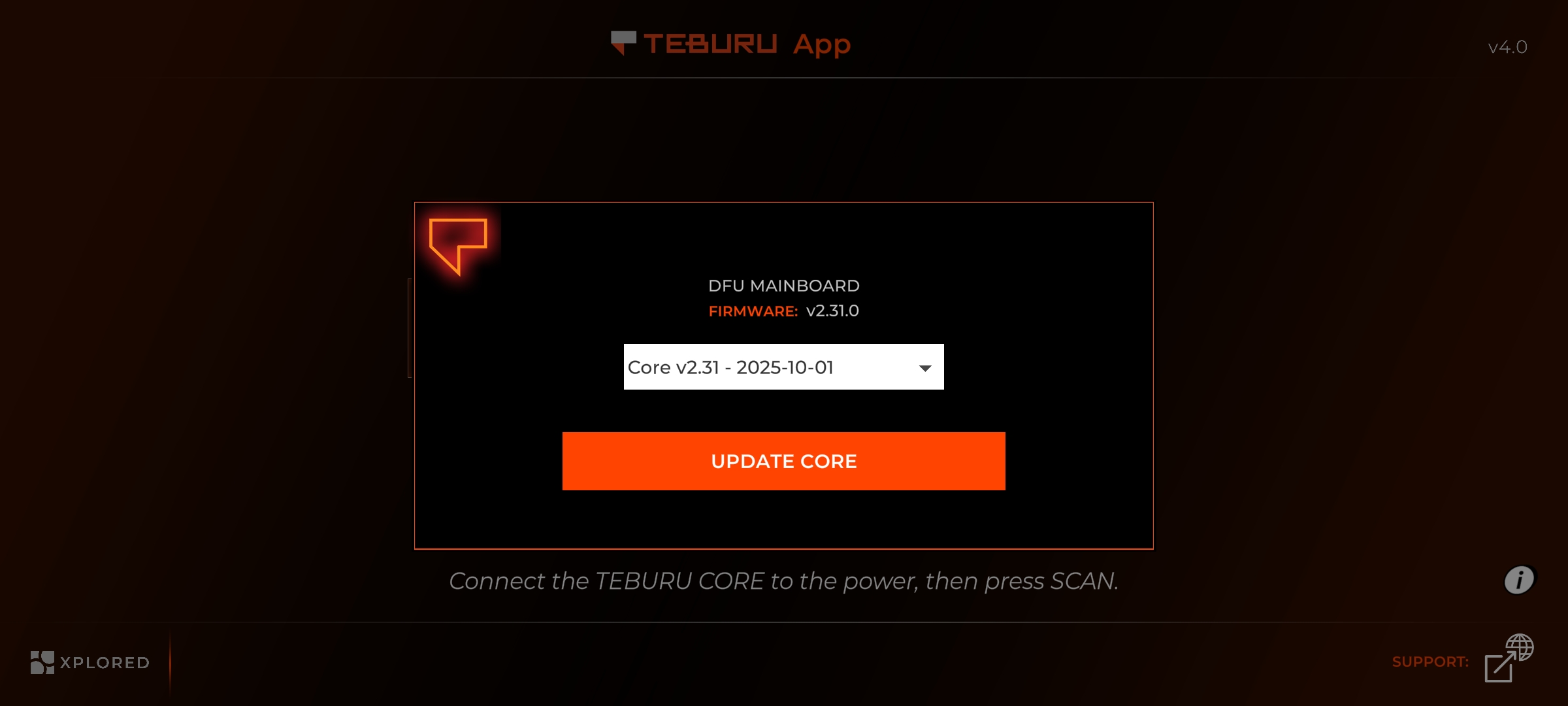

Updating Core Firmware

By clicking on the update firmware button you will be shown a list of all firmware version available. After ensuring a consistent power supply, you can press the "Update Core" button to update your core's firmware.
